nFUSE Full Size LED Lightbar
nFUSE Exterior Full Size Lightbar
THE RIGHT FEATURES, INCLUDING DUAL-COLOR CAPABILITY, FOR THE RIGHT PRICE.
- Slim profile only 48mm available in lengths from 609mm (36”) to 1828mm (72”)
- Modules can be configured as single or dual colour
- Replaceable outer lens available in clear, red, or blue
- Cruise mode
- An option for clear lens lightbars where the lightbar “glows” providing the effect of coloured lenses for static visibility
- Arrow control modules can be combined with warning colours for maximum functionality
- Easily connects to our nERGY line of sirens and bluePRINT Control System
- Easily programmed using our SoundOff Signal Lightbar Configurator or bluePRINT applications.
- Configurations can be enhanced to suit the users’ needs providing maximum functionality
- Over 50 flash patterns, including cruise mode, takedown, alley lights and arrow patterns.
- Up to 8 Flashing Modes
- Ambient light sensor for automatic night-time dimming
INPUT VOLTAGE: 10-32 Vdc
OPERATING TEMPERATURE: -40°C to +65°C
CURRENT DRAW
36″: 12.8 Vdc, 14 Amps or 25.6 Vdc, 7 Amps
42″: 12.8 Vdc, 16 Amps or 25.6 Vdc, 8 Amps
48″: 12.8 Vdc, 18 Amps or 25.6 Vdc, 9 Amps
54″: 12.8 Vdc, 20 Amps or 25.6 Vdc, 10 Amps
60″: 12.8 Vdc, 22 Amps or 25.6 Vdc, 11 Amps
72″: 12.8 Vdc, 26 Amps or 25.6 Vdc, 13 Amps
Standby current (ignition active): 0.20 Amps
Shutdown current (ignition o
More Blog Posts
March 23, 2020
The MineLux Mk1 is a purpose-built LED lighting solution for mining and autonomous machinery, designed in Australia to withstand harsh operating conditions.
April 21, 2020

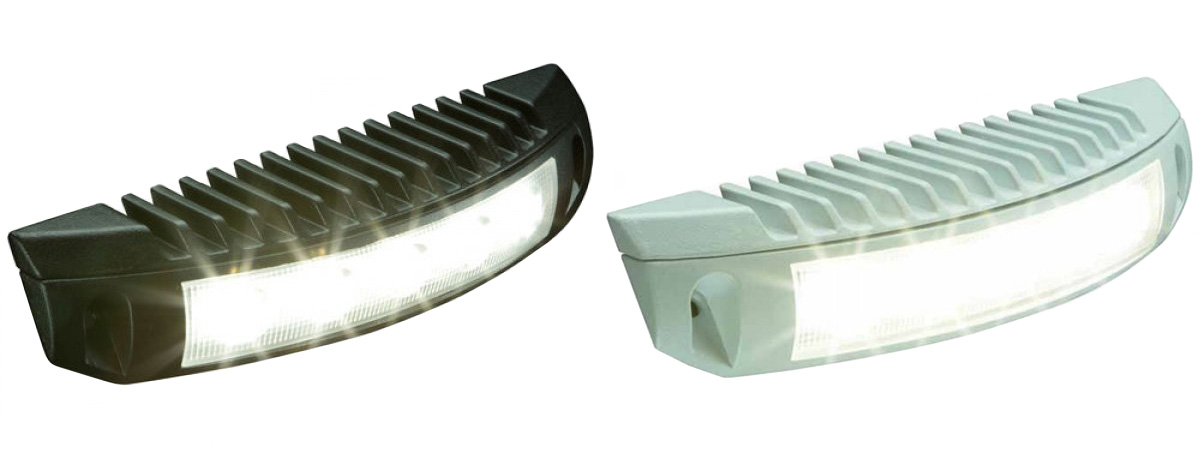

Discover the Labcraft Si7, a compact LED scene light with high-performance output, IP67 protection and a 10-year warranty for demanding applications.
